TECHNICAL SPECIFICATIONS

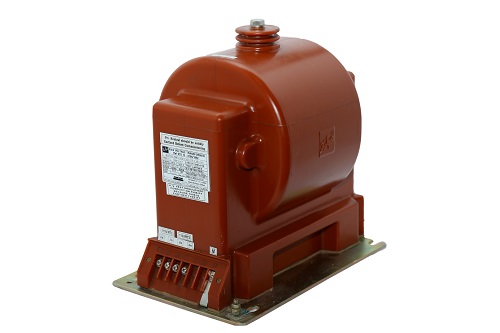

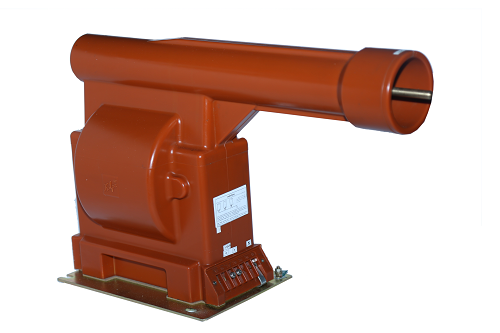

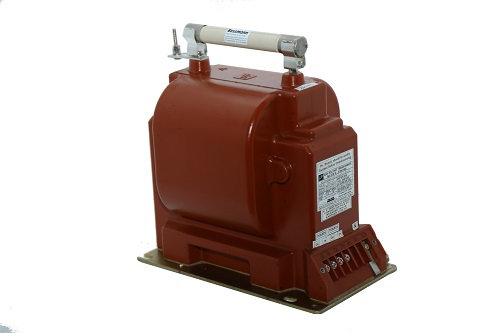

Casting Epoxy Resin
Highest Current For Equipment(kV) Up to 36Kv
Rated Insulation Level(kV)  Up to 36/70/170kVp
Rated Frequency(Hz) 50-400Hz
No of Phases 1-Phase or 3-Phase
Rated Primary Voltage(V) Up to 33kV
Rated Secondary Voltage(V) 110V/RT3,110V/3,110V(As Per Requirement)
Accuracy class 0.1, 0.2, 0.5, 1, 3
Rated Burden(VA) Up to 500VA
Accuracy class of Protection core 3P and 6P
Number of Windings 1-2-3-4-5
Class of insulation Class B, F & H
Voltage Factor 1.2 Continuous/1.5 for 30 sec,1.9 for 8 hours
Type of Earthing One End Earthed Type(E-N) / UN Earthed Type(U-N)
Applicable Standards IS,IEC,ANSI,BS,etc.
